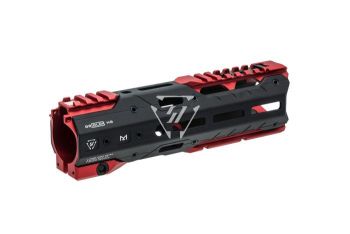

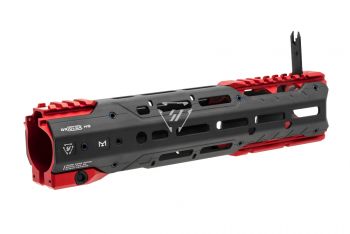

GRIDLOK® LITE Rail for AR-15

$175.95
In stock
SKU
SI-GRIDLOK-LITE

The Strike Industries GRIDLOK® LITE Rail for AR-15 takes innovation from GRIDLOK® but this is a 1-piece design to minimize weight and offer a cost-effective option. Using the same Patent Pending Quick Rail Detach system, only one of very few handguards on the market today that can be removed at home or in the field quickly without tools.

With the Quick Rail detach system, a simple push and pull of the of the quick detach (QD) latch, you have the handguard off in seconds to make any adjustments to an adjustable gas block or installation/removal of a suppressor. The QD latch has also been redesigned with a new locking button for earlier latch locking.

Integrated into the front of the GRIDLOK® LITE is the built-in flip up backup iron sight (BUIS). Compatible with the M-LOK system at the 3, 6 and 9 o’clock locations. In the rear of the handguard you will find a integrated 360° free swivel QD socket for a 2-point setup. Rear tabs with set screws at the top the SI GRIDLOK® LITE help center the top rail to the upper receiver to ensure proper alignment.

The cut in front was designed to help fit suppressors up to 1.57" (39.9mm) [necks down to inner diameter of 1.42" (36.0mm) after 3 inches from from of handguard] in diameter and of course all SI muzzle devises including the SI OPPRESSOR for those looking for that tucked look.

The handguard is machined from 6061-T6 aluminum and the barrel nut is machined from 7000 series aluminum which excels in applications that require lightweight and high strength. The Strike Industries GRIDLOK® LITE for AR-15 brings you features and improvements from big brother GRIDLOK® but with a more lightweight and cost-effective option.

COMPATIBILITY: Mil-Spec M4 upper receiver
NOT COMPATIBLE:
-Most piston gas blocks
-Some billet/side charging uppers
-11", 15", 17" with A2 Front Sight Post gas block

NOTE: The two locking screw at base can only be easily adjusted when the base is not mounted on barrel nut. It is NOT RECOMMENDED to adjust the locking tightness when you mount it on barrel nut. Scroll down for installation videos.

Torque: 30-50 ft/lbs (47.45-67.79 nM) for the barrel nut

Package Contents:
-x1 GRIDLOK® LITE rail
-x1 Barrel nut
-x1 Barrel nut shim kit (4-pcs)
-x1 Optional anti-rotation set screws
-x1 Barrel nut wrench
-x1 Locking lever tool
-x1 Hex tool (1.5mm)
-x1 Loctite® Threadlocker Blue 242®
-x1 Warning card

Product Features:
-1-pc free float handguard design to minimize weight and a cost-effective option
-Same Patent Pending Quick Rail Detach system as GRIDLOK® with redesigned locking button for easier QD latch locking
-Built-in flip up front BackUp Iron Sight (BUIS)
-Compatible with the M-LOK system at the 3, 6 and 9 o’clock locations
-Integrated 360° free swivel QD socket at rear of handguard
-Rear tabs with set screws help center top rail to upper receiver
-Designed cut in front fits suppressors up to 1.57" (39.9mm) [necks down to inner diameter of 1.42" (36.0mm) after 3 inches from from of handguard] in diameter and all SI muzzle devices, including SI OPPRESSOR
-Handguard machined from 6061-T6 aluminum
-Barrel nut machined from 7000 series aluminum which excels in applications requiring lightweight and high strength

Product Specifications:
BARREL NUT TORQUE: 30-50 ft/lbs (40.67-60.79 Nm)

INNER DIAMETER: Designed cut in front fits suppressors up to 1.57" (39.9mm) [necks down to inner diameter of 1.42" (36.0mm) after 3 inches from front of handguard] in diameter and all SI muzzle devices, including SI OPPRESSOR

LENGTH: Rail listed lengths are exactly as stated from the face of the upper receiver to the front of the rail
WIDTH: (from flat end to flat end) 44.75 mm (1.76")
HEIGHT: (from bottom to top of Picatinny rail) 54.50 mm (2.15")

WEIGHT W/ BARREL NUT:
-8.5": 11.8 oz
-11": 13.7 oz
-15": 1 lb 1.1 oz
-17": 1 lb 2.6 oz

WARNING:
-Before every use, always check proper function of your QD mount and any wear and tear from use
-Always have your weapon in the SAFE position when not being fired
-Always follow all firearms safety rules and never point your weapon at anything you are not willing to destroy

-CALIFORNIA PROPOSITION 65 WARNING:-
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov
