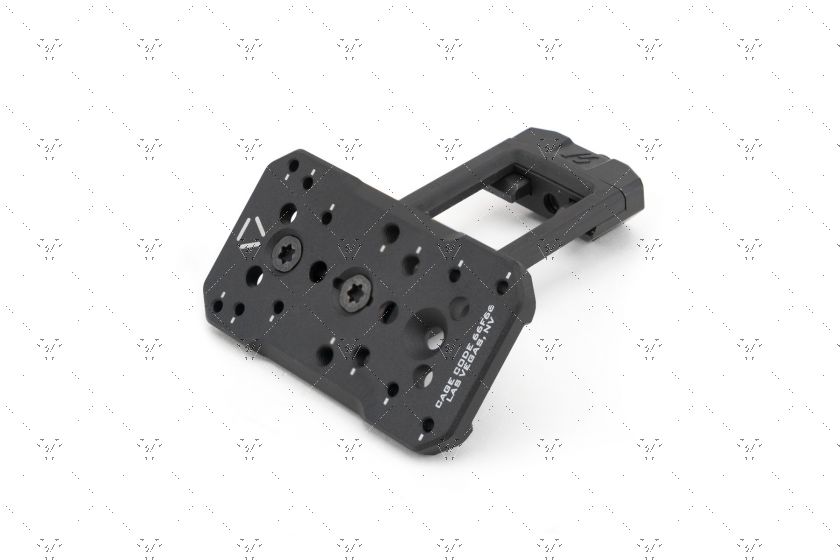

Strike Ambush 45-Degree Optic Mount
$74.95
In stock
SKU
SI-AMBUSH-OM45
The Strike Ambush 45-Degree Optic Mount gives you a modular dual mounting plate design which covers just about all mainstream red dots on the market. When you want to run a dual optic setup and have a close distance Mini/Micro Red Dot Sight (MRDS) with a Low Power Variable Optic (LPVO) scope, this 45-degree optic mount is a low-profile and high-strength accessory without forcing you to pick only one red dot you have to pair it up with. The 45-degree angle should get you out of the way of most LPVO scopes along with two mounting positions to pick from on the SI Multi-Optic Mount side. Easily place a MRDS alongside a LPVO with the low-profile SI-Ambush Picatinny rail mount that either sits flush with the top of the Pic rail or slightly below making it easier to sit under a scope or scope mount. The Strike Ambush 45 comes with a dual footprint mounting plate which has the SI Multi-Optic Mount on one side and the Aimpoint® Micro Standard footprint for T-1/T-2 compatible red dots on the other side making this a new innovative modular option for a diverse market. The SUS630 hardened stainless steel Picatinny rail mount is ambidextrous for either side. The 6061-T6 aluminum mounting plate can be flipped to select which MRDS but also oriented to work with the right or left side of the Pic rail. Fitment for one or fitment for almost all MRDS’ on the market, the Strike Ambush 45-Degree Optic Mount gives you a simple, compact and modular just about all-in-one solution.
MOUNT COMPATIBILITY: 1913 Picatinny
(See individually listed red dot compatibility and suggested hardware to use in PRODUCT SPEC tab)
RED DOT COMPATIBILITY:
-Aimpoint Micro Standard
-C-MORE, DELTAPOINT PRO, DOCTER/NOBLEX, RMR STANDARD, SHIELD STANDARD & all SIG SAUER Open Reflex Sights
WARNING:
-When using screws provided in the package, there is always a chance of hardware marring your optic housing finish/coating
-Be careful and use your best judgment on which hardware to use for your specific setup
-All installations should only be done by a certified professional gunsmith and properly tested to pass all safe and function tests
Torque: Do not exceed 15 in/lbs (1.69 nM) for the Picatinny mount screw
Package Contents:
-x1 Strike Ambush 45-degree mount (fully assembled)
-x1 Strike double sided optic plate
-x2 Screw for optic plate to mount [M3x10mm T10 Flat]
-x4 Screw for Aimpoint Micro Standard [M3x7mm T10 Rounded]
-x3 Screw [M3x8mm T10 Flat]
-x3 Screw [M3x9mm T10 Flat]
-x3 Screw [M3x10mm T10 Flat]
-x3 Screw [M3x8mm T14 Flat]
-x3 Screw [M3x8mm T15 Flat]
-x3 Screw [M3x8mm T10 Rounded]
-x3 Screw [M3x10mm T10 Rounded]
-x3 Screw [M3x11mm T11 Rounded]
-x5 Large mounting post
-x5 Small mounting post
-x5 Shallow mounting post
-x3 Tall mounting post
-x1 Torx tool [T10]
-x1 Torx tool [T25]
-x1 Loctite® Threadlocker Blue 243®
-x1 Multi-Optic Mount card
-x1 Warning card
Product Features:
-45-degree offset
-Dual footprint mounting plate with SI Multi-Optic Mount and Aimpoint® Micro Standard
-Ambidextrous for either side
-Two mounting positions to pick from on SI Multi-Optic Mount side
-SI-AMBUSH low-profile mounting system
-Lightweight and high-strength
-SUS630 hardened stainless steel Picatinny rail mount
-Mounting plate machined from 6061-T6 aluminum
MOUNT COMPATIBILITY: 1913 Picatinny
(See individually listed red dot compatibility and suggested hardware to use in PRODUCT SPEC tab)
RED DOT COMPATIBILITY:
-Aimpoint Micro Standard
-C-MORE, DELTAPOINT PRO, DOCTER/NOBLEX, RMR STANDARD, SHIELD STANDARD & all SIG SAUER Open Reflex Sights
WARNING:
-When using screws provided in the package, there is always a chance of hardware marring your optic housing finish/coating
-Be careful and use your best judgment on which hardware to use for your specific setup
-All installations should only be done by a certified professional gunsmith and properly tested to pass all safe and function tests
Torque: Do not exceed 15 in/lbs (1.69 nM) for the Picatinny mount screw
DISCLAIMER: "Aimpoint" is a federally registered trademarks of Aimpoint Inc. and are one of many trademarks owned by Aimpoint Inc. Neither Strike Industries Inc nor this site are affiliated in any manner with, or otherwise endorsed by, Aimpoint Inc. The use of "Aimpoint" on this page is merely to advertise the sale of Aimpoint parts, or components. For additional genuine Aimpoint Inc and parts visit www.aimpoint.us.
-CALIFORNIA PROPOSITION 65 WARNING:-
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov
-LENGTH: 52.10 mm(2.05")
-WIDTH: 26.60mm(1.05")
-HEIGHT: 62.75mm(2.47")
-WEIGHT: 1.80 oz
-WEIGHT W/ PKG: 3.80 oz
WARNING:
-The below compatibility list is based on known SI test fitments as well as footprint data found online but do not guarantee 100% the full list is accurate
-Please note there is also other possible red dot brand and model fitments that can work
-When using screws provided in the package, there is always a chance of hardware marring your optic housing finish/coating
-Be careful and use your best judgment on which hardware to use for your specific setup
-All installations should only be done by a certified professional gunsmith and properly tested to pass all safe and function tests
-AIMPOINT MICRO STANDARD: (+ additional Aimpoint Micro Standard footprint optics not listed here)
| AIMPOINT: MICRO T-1/T-2/H-1/H-2 | Screw: x4 M3x6mm Rounded | Mounting Post: None |
| AIMPOINT: DUTY RDS | Screw: x4 M3x6mm Rounded (optic factory screws also work) |
Mounting Post: None |
| SIOPTO: SCOUTER | Screw: x4 M3x6mm Rounded | Mounting Post: None |
-C-MORE STANDARD: (+ additional C-MORE Standard footprint optics not listed here)
| C-MORE SYSTEMS: | Screw: x2 M3x10mm Rounded | Mounting Post: x2 Small |
| SIG SAUER: ROMEO3MAX/3XL | Screw: x2 M3x10mm Rounded | Mounting Post: x2 Small |
| VORTEX OPTICS: RAZOR RED DOT | Screw: x2 M3x11mm Rounded | Mounting Post: x2 Small |
-DELTAPOINT PRO STANDARD: (+ additional DeltaPoint Pro Standard footprint optics not listed here)
| EOTECH: EFLX MINI REFLEX SIGHT (MRS) | Screw: x2 M3x8mm Rounded | Mounting Post: x2 Large |
| LEUPOLD: DELTAPOINT PRO | Screw: x2 M3x15mm Flat | Mounting Post: x2 Large |
| SIG SAUER: ROMEO1 | Screw: x2 M3x8mm Flat | Mounting Post: x2 Tall |
| SIG SAUER: ROMEO1PRO | Screw: x2 M3x8mm Flat | Mounting Post: x2 Tall |
| SIG SAUER: ROMEO2 | Screw: x2 M3x14mm Flat | Mounting Post: x2 Large |
-DOCTER/NOBLEX STANDARD: (+ additional Docter/Noblex Standard footprint optics not listed here)
| ATIBAL OPTICS: MRD V2/V3 RED DOT SIGHT | Screw: x2 M3x8mm Rounded | *Mounting Post: x4 Small (*MRD V3 housing mount post holes are taller than small SI mounting posts provided) |
| BURRIS OPTICS: FASTFIRE™ 2 | Screw: x2 M3x8mm Flat | Mounting Post: x4 Small |
| CRIMSON TRACE: CT RAD™ PRO | Screw: x2 M3x8mm Flat | Mounting Post: x4 Small |
| PRIMARY ARMS: SLX RS-10 | Screw: x2 M3x10mm Flat | Mounting Post: x3 Small |
| VORTEX OPTICS: VIPER RED DOT | Screw: x2 M3x8mm Flat | Mounting Post: x4 Small |
| VORTEX OPTICS: VENOM RED DOT | Screw: x2 M3x7mm Rounded | Mounting Post: x4 Small |
-RMR STANDARD: (+ additional RMR Standard footprint optics not listed here)
| ATIBAL OPTICS: CRD RED DOT SIGHT | Screw: x2 M3x8mm Flat | Mounting Post: x2 Large |
| HOLOSUN: 407C/507C/508T | Screw: x2 M3x8mm Flat | Mounting Post: x2 Large |
| HOLOSUN: 509T |
*Screw: x2 M3x6mm Flat |
Mounting Post: x2 Large |
| SWAMPFOX OPTICS: JUSTICE/LIBERTY KINGSLAYER | Screw: x2 M3x10mm Flat | Mounting Post: x2 Large |
| SWAMPFOX OPTICS: KRAKEN |
*Screw: x2 M3x6mm Flat |
Mounting Post: x2 Large |
| TRIJICON: RMR/SRO | Screw: x2 M3x10mm Flat | Mounting Post: x2 Large |
-SHIELD STANDARD: (+ additional Shield Standard footprint optics not listed here)
| HOLOSUN: 407K/507K |
Screw: x2 M3x8mm Flat |
Mounting Post: x2 Shallow |
|
HOLOSUN: EPS CARRY MRS |
Screw: x2 M3x8mm Flat | Mounting Post: Not Compatible |
| SHIELD SIGHTS: AMS/RMS/RMS2/RMSC/ RMSX/SIS/SMS/SMS2/SMSC | Screw: x2 M3x8mm Rounded | Mounting Post: x2 Large |
|
SIG SAUER: ROMEOZERO |
Screw: x2 M3x8mm Flat | Mounting Post: x2 Large |
| SWAMPFOX OPTICS: SENTINEL | Screw: x2 M3x8mm Rounded | *Mounting Post: x2 Large (*mounting posts only using rear housing mount post holes) |
|
VORTEX OPTICS: DEFENDER-CCW RED DOT |
Screw: x2 M3x8mm Flat | Mounting Post: x2 Large |
